NEOs T24
Backup and Archive Made Easy

NEOs T24

Overland Storage Products
NEOs T24

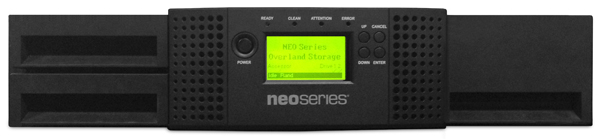

NEOs T24 2u/24-slot/1-LTO6 HH SAS
#OV-NEOsT246SA
Our Price: $6,155.00
NEOs T24 2u/24-slot/1-LTO6 HH FC
#OV-NEOsT246FC
Our Price: $6,769.00
NEOs T24 2u/24-slot/1-LTO7 HH FC
#OV-NEOsT247FC
Our Price: $9,085.85
NEOs T24 2u/24-slot/1-LTO7 HH SAS
#OV-NEOsT247SA
Our Price: $8,102.98
NEOs T24 2u/24-slot/1-LTO8 SAS
#OV-NEOsT248SA
Our Price: $8,224.60
NEOs T24 2u/24-slot/1-LTO8 FC
#OV-NEOsT248FC
Our Price: $11,099.00

More pricing below, click here

Overview:

Don’t let the entry-level price point fool you — the NEOs T24 is a powerful backup and archive solution designed for small businesses or remote locations. Packing up to 150TB of storage capacity in a compact 2U form factor, the NEOs T24 delivers amazing capabilities in a compact form factor. Available as either a 12-slot autoloader or a 24-slot library, the NEOs T24 provides affordable, dependable, easy to use backup and archive capability for a variety of data center environments.

With This Product You Can...

  • Affordably backup or archive up to 72TB of data
  • Effortlessly manage your backup and archive processes from anywhere in the world
  • Add tape drives as needed for increased performance and enhanced efficiency

About the NEO S-Series Family

Designed for IT offices with limited space, limited resources and limited budgets, the NEOs family delivers the ultimate in simple, affordable, reliable backup, archive and disaster recovery.

Because disk is an expensive place to store massive amounts of infrequently accessed data, best practices recommend archiving data off to tape. Moving the data to a NEO S-Series library reduces backup storage requirements, reduces costs, improves use of valuable floor space, improves energy efficiency, provides a higher level of data security and improves performance of networks and disk-based backup systems. NEO S-Series tape libraries provide the capacities, features and efficiencies needed for archived data.

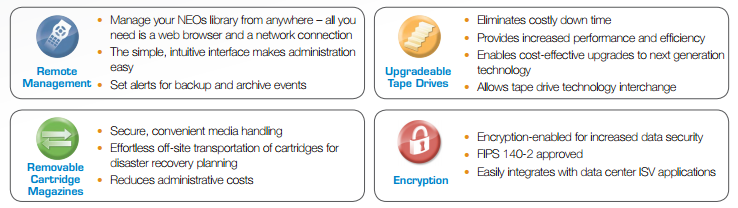

NEO Features

Simple

Web-based remote management provides easy and convenient administration of the data archive process from anywhere in the world. Removable cartridge magazines enable easy access to data, reduce media handling costs and facilitate offline storage of your data for disaster recovery purposes. Standard barcode readers reduce media inventory times and simplify media management. Mail slots deliver easy, secure access to individual tape cartridges without interrupting library operations. NEOs tape drives are easily added, removed or replaced, providing the flexibility to adapt to changing data storage requirements.

Compact

Available in rack-friendly 1u, 2u and 4u form factors, NEOs packs up to 360TB of data into a single unit of rack height. The ability to store so much data in such a small space minimizes the use of valuable rackspace and reduces your overall cost of ownership.

Affordable

NEOs ease-of-use features mean you spend less time managing your backup and archive, reducing your administrative costs. Because NEOs is an extremely reliable platform, service and maintenance costs are reduced and the costs associated with downtime and lost productivity are eliminated. Effortless upgradeabilityto next-generation technologies protect your investment long-term while allowing you to increase your storage capacities and transfer rates in order to keep up with the ever-increasing demand to store more and more data.

Versatile

Providing up to 1.4PB of data storage capacity, NEOs tape library solutions are not only designed to meet your data backup and archive needs but to add storage as needed. Available with SAS or Fibre Channel connectivity, NEOs easily integrates into your existing network infrastructure and provides seamless compatibility with 3rd party backup software applications. Native partitioning capability in NEOs T24 and T48 libraries provides the ability to carve a single physical library into smaller logical libraries and securely use your NEOs library for a variety of different storage applications.

Features:


LTFS

Encryption

Highlights
  • Encryption-enabled for increased data security
  • FIPS 140-2 approved
  • Easily integrates with data center ISV applications
Remote Management

Remote Management

NEO Series remote management provides intelligent, proactive administration and monitoring of the tape library, tape drives and media, ensuring a seamless backup and archive process.

Highlights
  • Provides tape drive and tape cartridge status information
  • Enables remote configuration activities
  • Alerts user to unusual/suspicious activity that may affect the backup/archive process via email or SNMP traps
  • Enables remote firmware upgrades
  • Provides remote diagnostics capabilities
Why You Need It...
  • Provides convenient and reliable management of the backup/archive process from anywhere in the world
Removable Cartridge Magazines

Removable Cartridge Magazines

NEO Series removable cartridge magazines provide effortless media handling for loading/unloading of cartridges while facilitating off-line storage for disaster recovery purposes.

Highlights
  • Allows users to conveniently add/remove cartridges in their NEO library
  • Provides easy off-line handling of multiple cartridges
  • Enables convenient off-line/off-site storage of cartridges for disaster recovery purpose
  • Ensures more efficient media handling both inside and outside of a NEO Series library
Why You Need It...
  • Reduces administrative overhead by making media handling more efficient and reliable
Upgradable Tape Drives

Upgradable Tape Drives

Avoid those dreaded forklift upgrades when new tape technologies become available. With NEO Series libraries, you can upgrade your drives and media on the fly. Installing and removing tape drives in is quick and easy. LTO drives maintain backward compatibility to previous generation tapes, so you won’t orphan any data during the upgrade process. This approach not only protects your investment, but also minimizes administrative overhead, and reduces service/maintenance costs.

Highlights
  • Users can easily remove/replace tape drives to provide effortless upgrades to next-generation tape drive technologies
  • Downtime costs are eliminated by enabling end user replacement of tape drives (no waiting for a service tech to show up)
  • Tape drives can easily be added to existing tape libraries for increased performance and efficiency
  • Tape drives can be interchanged between NEO libraries for increased investment protection
Why You Need It...
  • Protects your original library investment and reduces administrative overhead
Partitioning

Partitioning

NEO Series partitioning capability allows you to configure a single physical library into multiple virtual libraries.

Highlights
  • Improves efficiency of the backup/archive process by enabling multi-tasking within the same library
  • Enables you to configure a single NEO library to interface with different backup servers, regardless of their connectivity type (SCSI, SAS, FC, etc.)
  • Protects your investment by allowing you to simultaneously use a single NEO library with a variety of backup software applications
Why You Need It...
  • To maximize efficiency and improve cost of ownership

Specifications:

#of cartridge slots 24
#of tape drives 1-2
# of mail slots 1
Tape drives supported LTO-8, LT0-7, LTO-6, LTO-5
Minimum Capacity LT08: 288TB
LT07: 144TB
LTO6: 30-60TB
LTO5: 18-36TB
Maximum Capacity LT08: 720TB
LT07: 360TB
LTO6: 75-150TB
LTO5: 36-72TB
Minimum data transfer rate LT08: 2.2TB/hr
LT07: 2.2TB/hr
LTO6: 576GB/hr
LTO5: 504GB/hr
Maximum data transfer rate LT08: 5.4TB/hr
LT07: 5.4TB/hr
LTO6: 2.9TB/hr
LTO5: 2.0TB/hr
Interfaces 6Gb SAS, 8Gb FC
Connectors Mini-SAS, LC optical FC
Form Factor 2U
Dimensions (inches - unpackaged) 3.44"(h) x 17.6"(w) x 29.13"(d) (87.4mm x 447.0mm x 739.9mm)
Weight 33 / 14.9kg
Avg. cartridge swap time 45 seconds
Inventory time 1:20 minutes
Power Requirements 168 watts (max)
Input Requirements 100 to 240 VAC, 50 to 60 Hz
Humidity (non-condensing; operating) 10% to 80%
Temperature range (operating) 50° to 113° F (10° to 45° C)
Reliability >2,000,000 MCBF (robotic load/unload cycles)
Standard Warranty NEO S-Series libraries include one-year OverlandCare Bronze Support Coverage, which includes 5x9 telephone support and advanced parts replacement.

Product Comparison:

  NEOs StorageLoader NEOs T24 NEOs T48
  NEOs StorageLoader NEOs T24 NEOs T48
Configuration (total #) cartridge slots: 8
magazines: 2
mailslots: 1
tape drives: 1
cartridge slots: 24
magazines: 1-2
mailslots: 1
tape drives: 1-2
cartridge slots: 48
magazines: 4
mailslots: 3
tape drives: 1-4
Tape Drives Supported LTO-8, LTO-7, LTO-6, LTO-5 LTO-8, LTO-7, LTO-6, LTO-5 LTO-8, LTO-7, LTO-6, LTO-5
Capacity (max) uncompressed - LTO-8: 96TB, LTO-7: 48TB, LTO-6: 20TB, LTO-5: 12TB
compressed - LTO-8: 240TB, LTO-7: 120TB, LTO-6: 50TB, LTO-5: 24TB
uncompressed - LTO-8: 288TB, LTO-7: 144TB, LTO-6: 60TB, LTO-5: 36TB
compressed: LTO-8: 720TB, LTO-7: 360TB, LTO-6: 150TB, LTO-5: 72TB
uncompressed - LTO-8: 576TB, LTO-7: 260TB, LTO-6: 120TB, LTO-5: 72TB
compressed: LTO-8: 1.4PB, LTO-7: 720TB, LTO-6: 300TB, LTO-5: 144TB
Transfer Rate (max # drives) uncompressed - LTO-8: Up to 1TB/hr, LTO-7: Up to 1TB/hr, LTO-6: Up to 576GB/hr, LTO-5: Up to 504GB/hr
compressed - LTO-8: Up to 2.7TB/hr, LTO-7: Up to 2.7TB/hr, LTO-6: Up to 1.4TB/hr, LTO-5: Up to 1TB/hr
uncompressed - LTO-8: Up to 2.2TB/hr, LTO-7: Up to 2.2TB/hr, LTO-6: Up to 1.2TB/hr, LTO-5: Up to 1TB/hr
compressed - LTO-8: Up to 5.4TB/hr, LTO-7: Up to 5.4TB/hr, LTO-6: Up to 2.9TB/hr, LTO-5: Up to 2TB/hr
uncompressed - LTO-8: Up to 4.2TB/hr, LTO-7: Up to 4.2TB/hr, LTO-6: Up to 2.3TB/hr, LTO-5: Up to 2TB/hr
compressed - LTO-8: Up to 10.8TB/hr, LTO-7: Up to 10.8TB/hr, LTO-6: Up to 5.8TB/hr, LTO-5: Up to 4TB/hr
Reliability MSBF (mean swaps between failures): 2,000,000 MSBF (mean swaps between failures): 2,000,000
MTBF (mean time between failures): 100,000 hours
MSBF (mean swaps between failures): 2,000,000
MTBF (mean time between failures): 100,000 hours
Host Interface 6Gb SAS, 8Gb FC 6Gb SAS, 8Gb FC 6Gb SAS, 8Gb FC
Connectors Mini-SAS, LC Optical FC Mini-SAS, LC Optical FC Mini-SAS, LC Optical FC
User Interface LCD front panel; web-based remote management LCD front panel; web-based remote management LCD front panel; web-based remote management
Physical Specifications Dimensions: 1.73"(h) x 18.98"(w) x 31.85"(d); 1u 43.94mm x 482.1mm x 808.7mm
Weight: 25.4 lbs (without rackmount) 11.52 Kg
Dimensions: 3.44"(h) x 17.6"(w) x 29.13"(d); 2u 87.4mm x 447.0mm x 739.9mm
Weight: 33 lbs (without rackmount) 14.97 Kg
Dimensions: 6.9"(h) x 17.6"(w) x 29.13"(d); 4u 175.3mm x 447.0mm x 739.9mm
47 lbs (without rackmount) 21.31 Kg
Power 100 - 240 VAC; 50 - 60 Hz; 110 watts (max) 100 - 240 VAC; 50 - 60 Hz; 168 watts (max) 100 - 240 VAC; 50 - 60 Hz; 312 watts (max)
Environmental Requirements Humidity: 10-80% (operating, non-condensing)
Temperature: 10 °C to 35 °C (operating)
Humidity: 10-80% (operating, non-condensing)
Temperature: 10 °C to 45 °C (operating)
Humidity: 10-80% (operating, non-condensing)
Temperature:10 °C to 45 °C (operating)
Standard Warranty NEO S-Series products are covered by a one-year Advanced Parts Replacement and 9x5 telephone support. NEOs libraries are eligible for enhanced maintenance options to augment the standard limited warranty.
Upgrade Options 3 years advanced parts replacement
1 year/ 3 years onsite
Included in Std. Configuration Library with (1) tape drive, US & European power cord, Quick Start Guide, rackmount hardware
Accessories LTO-8 / LTO-7 / LTO-6 / LTO-5 upgrade tape drives, LTO-8 / LTO-7/ LTO-6 / LTO-5 media, LTO cleaning cartridges, SAS connectivity kit, LTO-8 / LTO-7 / LTO-6 / LTO-5 barcode labels, 8-slot magazines LTO-8 / LTO-7 / LTO-6/ LTO-5 add-on tape drives, LTO-8 / LTO-7 / LTO-6/ LTO-5 media, LTO cleaning cartridges, SAS connectivity kit, LTO-8 / LTO-7 / LTO-6/ LTO-5 barcode labels, 12-slot magazines LTO-8 / LTO-7 / LTO-6 / LTO-5 add-on tape drives, LTO-8 / LTO-7 / LTO-6 / LTO-5 media, LTO cleaning cartridges, SAS connectivity kit, LTO-8 / LTO-7 / LTO-6/ LTO-5 barcode labels, 12-slot magazines, redundant power option

Documentation:

Download the NEOs Series Datasheet (PDF).

Pricing Notes:

Overland Storage Products
NEOs T24
NEOs T24 2u/24-slot/1-LTO6 HH SAS
#OV-NEOsT246SA
Our Price: $6,155.00
NEOs T24 2u/24-slot/1-LTO6 HH FC
#OV-NEOsT246FC
Our Price: $6,769.00
NEOs T24 2u/24-slot/1-LTO7 HH FC
#OV-NEOsT247FC
Our Price: $9,085.85
NEOs T24 2u/24-slot/1-LTO7 HH SAS
#OV-NEOsT247SA
Our Price: $8,102.98
NEOs T24 2u/24-slot/1-LTO8 SAS
#OV-NEOsT248SA
Our Price: $8,224.60
NEOs T24 2u/24-slot/1-LTO8 FC
#OV-NEOsT248FC
Our Price: $11,099.00
NEOs Series Options and Accessories
NEOs T24 left-side magazine
#OV-NEOsT24MGL
Our Price: $599.00
NEOs T24/T48 right-side magazine(s)
#OV-NEOsT248MGR
Our Price: $499.00
NEOs T24/T48
NEOs T24/T48 LTO6 SAS add-on drive
#OV-NEOs6SAAOD
Our Price: $6,119.00
NEOs T24/T48 LTO6 FC add-on drive
#OV-NEOs6FCAOD
Our Price: $6,749.00
NEOs T24/T48 LTO7 SAS add-on drive
#OV-NEOs7SAAOD
Our Price: $8,919.00
NEOs T24/T48 LTO7 FC add-on drive
#OV-NEOs7FCAOD
Our Price: $10,139.00
NEOs T24/T48 LTO8 SAS add-on drive
#OV-NEOs8SAAOD
Our Price: $10,699.00
NEOs T24/T48 LTO8 FC add-on drive
#OV-NEOs8FCAOD
Our Price: $10,999.00
NEO Support Services
OverlandCare Bronze-Level (2 Biz Day Adv. Parts Replace), 1-Year Uplift, NEOs T24
#EW-24BRZ1UP
Our Price: $339.00
OverlandCare Bronze Warranty Coverage, 1 year extension, NEOs T24
#EW-24BRZ1EX
Our Price: $763.06
OverlandCare Bronze-Level (2 Biz Day Adv. Parts Replace), 3-Year Uplift, NEOs T24
#EW-24BRZ3UP
Our Price: $549.00
OverlandCare Silver-Level (9x5xNBD Onsite), 1-Year Uplift, NEOs T24
#EW-24SLVR1UP
Our Price: $599.00
OverlandCare Silver-Level (9x5xNBD Onsite), 1-Year Extension, NEOs T24
#EW-24SLVR1EX
Our Price: $925.15
OverlandCare Silver-Level (9x5xNBD Onsite), 3-Year Uplift, NEOs T24
#EW-24SLVR3UP
Our Price: $959.00
OverlandCare Gold-Level (9x5x4-Hr Onsite/24x7 Phone Assist), 1-Year Uplift, NEOs T24
#EW-24GLD1UP
Our Price: $719.00
OverlandCare Gold-Level (9x5x4-Hr Onsite/24x7 Phone Assist), 1-Year Extension, NEOs T24
#EW-24GLD1EX
Our Price: $869.00
OverlandCare Gold-Level (9x5x4-Hr Onsite/24x7 Phone Assist), 3-Year Uplift, NEOs T24
#EW-24GLD3UP
Our Price: $1,099.00
OverlandCare Platinum-Level (24x7x4-Hr Onsite/24x7 Phone Assist), 1-Year Uplift, NEOs T24
#EW-24PLAT1UP
Our Price: $889.00
OverlandCare Platinum-Level (24x7x4-Hr Onsite/24x7 Phone Assist), 1-Year Extension, NEOs T24
#EW-24PLAT1EX
Our Price: $1,049.00
OverlandCare Platinum-Level (24x7x4-Hr Onsite/24x7 Phone Assist), 3-Year Uplift, NEOs T24
#EW-24PLAT3UP
Our Price: $2,139.00
