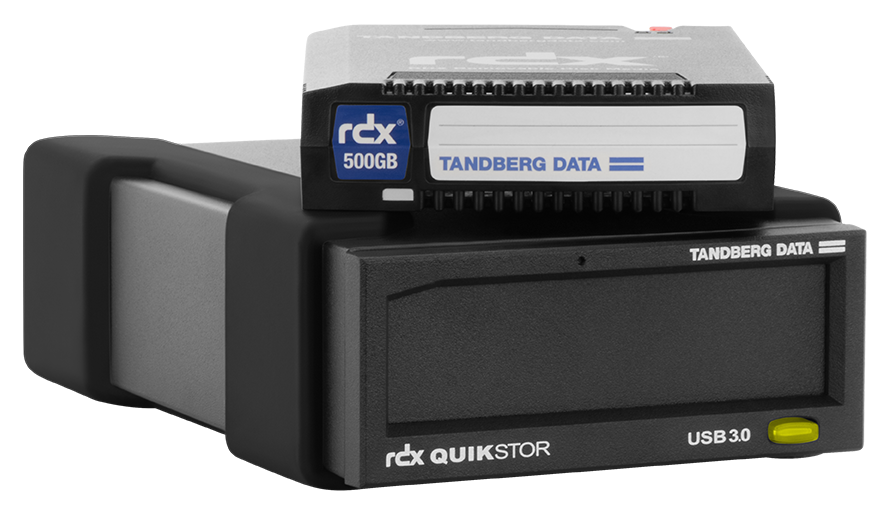

RDX^® QuikStor™
Rugged, Reliable, Removable Storage for your Business

Features:

Enterprise Reliability

The exploding growth of mission-critical digital content combined with government regulated retention policies has created a need for secure, reliable and portable data protection solutions at an affordable cost. The Overland-Tandberg RDX QuikStor technology delivers a rugged design for maximum data protection and secure handling. Full backward/forward compatibility allows users to scale to higher capacities, without worrying about drive generations.

High Performance

SuperSpeed USB 3.0 and SATA III interfaces offer high performance. With a choice of hard disk and solid-state disk media, unique performance requirements are met. From professional workstations to the low-end enterprise, RDX QuikStor provides users with best-in-class backup and archive capability that is ideally suited to help users get their businesses up and running quickly in the event of data loss.

External USB3+ Version for more Mobility

The external RDX USB3+ drive is USB powered. It is as easy to use as an external USB disk drive but much more robust and reliable. With more conveniece for the traditional backup tasks it enables RDX for outdoor usage like scientific data collection, in the media and entertainment environment, mobile workforce or just for easy data distribution across locations.

Fixed Disk Mode for Windows® Backup

RDX QuikStor provides a fixed disk mode in USB 3.0 drives and is the only removable storage device that integrates seamless into Windows-backup utility. Users don‘t have to install aditional software for data protection on Windows.

Capacity Expansion and Media Rotation

For best practice, multiple media should be used for backup and stored off-site for disaster recovery purposes. Media Spanning to multiple RDX media is possible with supported backup software and allows backups to grow and to expand capacity beyond a single RDX media.

Additional Protection

Overland-Tandberg offers enhanced security features for RDX to satisfy the requirements of a broad area of applications. RDX WORM enhances RDX for compliant archiving (optional software-solution). RDX RansomBlock protects backup data stored on RDX media against virus and ransomware attacks. PowerEncrypt hardware encryption for SATA III drives and RDX Cartridge Encryptor (RCE) software for USB drives are features to encrypt data stored on RDX media at no extra cost.

Technical Specifications:

Specifications	Internal RDX Drives			External RDX Drives
Form Factor	3.5″ (SATA III/USB 3.0)	5.25″ (SATA III/USB 3.0)		External Housing (USB 3.0)
Height	41 mm (1.63 in)	41 mm (1.63 in)		52 mm (2.04 in)
Width	102 mm (4.00 in)	146 mm (5.78 in)		110 mm (4.32 in)
Length	159 mm (6.28 in) incl. bezel	170.72 mm (6.72 in) incl. bezel		178 mm (7.00 in) incl. bezel
Weight	408 g (0.9 lb)	635 g (1.4 lb)		615 g (1.35 lb)
Mounting & Operating Orientation	Horizontal or Vertical
Interface	SATA III	USB 3.0		USB 3.0 (USB powered)
Interface Connector	SATA	Type-B		Type-B
Interface Operation Mode	Removable disk	Removable disk & Fixed disk		Removable disk & Fixed disk
Transfer Rate Average Sustained (media dependent)	Up to 330 MB/s	Up to 260 MB/sUp to 260 MB/s		Up to 260 MB/s
Power Specifications	SATA III	USB 3.0		USB 3.0 (USB powered)
Voltage	+5 V	+5 V	+12 V	+5 V
Current at Read/Write (Typical / Peak)	0.9 A / 1.6 A	0.9 A / 1.6 A	0.005 mA / 1.4 A	0.9 A / 1.6 A
Power Connector	SATA Power	4-Pin Molex		optional: 5.5 mm
Power Adapter	4-Pin Molex to SATA Power	SATA Power to 4-Pin Molex		optional power adapter: +5 V (+/- 10%) 2,4 A to +12 V (+/- 10%) 1,0 A
Media
Capacity	500GB, 1TB, 2TB, 3TB, 4TB or 5TB (HDD) / 128GB, 256GB (SSD)
Read/Write Compatibility	Forward/backward compatibility to all RDX drives and systems
Reliability
Media Drop Shock (Non-operating)	1m drop to tile over concrete oor (Media)
Load-/ Unload (Minimum)	Drive: 10,000 insertion / removal cycles, Media: 5,000 insertion / removal cycles
MTBF	550,000 Hours
Vibration (max)	0.5G (operating), 1.0G (non-operating)
Environmental
Temperature	Operating: +10°C to +40°C (+50°F to +104°F), Non-operating:-40°C to +65°C (-40°F to +149°F)
Relative Humidity	Non-condensing, operating:20% – 80%, Non-condensing, non-operating:8% – 90%
Altitude	Operating:-15 m to 3,048 m (-50 ft to 10,000 ft), Non-operating: -15 m to 10,660 m (-50 ft to 35,000 ft)
Other Features
Encryption	PowerEncrypt - hardware-based encryption for SATA III internal drives, FIPS 140-2 validated. (Software encryption is supported on all drive types.)
WORM	Enables compliant Archiving with rdxLOCK Software, KPMG certified (optional)
RansomBlock	Protects agains virus and ransomware attacks with rdxLOCK Software (optional)
Compression and Deduplication	Supports software-based compression and deduplication
Windows Backup	Fixed Disk Mode for Windows Backup Utility available in all USB 3.0 versions
Accessories
RDX® TENCASE	Optional, stores up to 10 RDX media in a robust and secure box (part.-no. 1022291)
RDX® QuadPAK™	Optional, allows up to 4 RDX external drives to be securely installed in a 19“ rack (part.-no. 3800-RAK)
FIPS 140-2 Security Label Set	Optional, needed for validation of tamper evident for FIPS 140-2 (part. no. 1022445)
