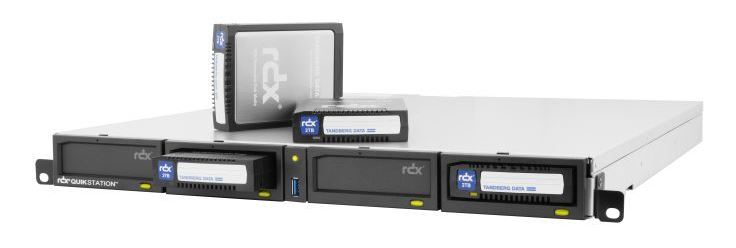

RDX^® QuikStation™ 4
Highly flexible removable disk array for automated data protection, disaster recovery and archiving

Key Benefits of QuikStation 4:

Feature	Benefit
Versatility	Ideal device for backup, archiving, data distribution and data seeding for businesses.
Network connected RDX	iSCSI connectivity allows easy integration into virtual, physical or hybrid environments for versatile storage applications.
Removable Disk Storage	RDX combines the benefits of disk and tape, allowing fast and secure data access with long term off-site archiving.
No Capacity Limitations	Volume spanning to overcome single RDX media capacity limitation. Removability for unlimited off-site storage capacity.
Protected mode for logical volume configuration	Ensures high data availability by providing fault tolerance of RDX media.
Windows® Backup Compatibility	Use removable disk media with Windows Backup Utility.
Manageability	Accessible from any standard web browser for user-friendly administration as well as automatic software updates.
No Media Compatibility Issues	Full forward and backward compatibility to all RDX media means no data migration effort.
Desktop and Rackmount Versions	The QuikStation 4 can be integrated in existing 19“-racks as well as placed on a desk for use in small office environments.
Green features for minimal power, cooling, and space requirements	RDX removability means that RDX media that is not currently in use can be taken offline to minimize data center power and cooling needs. High density 1U Form Factor packs a lot of functionality in a very small space minimizing impact on data center space requirements.
Dual Gigabit Ethernet (1GbE) ports	4 x 1 Gigabit Ethernet provides high availability network connectivity. Bonded, active backup/failover or adaptive load balancing.
Compatible with major backup software packages	Facilitates easy integration into existing data protection infrastructures. Compatible with Windows®, Linux, and Mac.
Easy to Setup and Use	Start protecting data fast, no special knowledge or training required.

RDX QuikStation 4 Advantages

High Performing Network Storage

For maximum performance and resiliency, the unit provides two bonded Gigabit Ethernet (GbE) ports with load balancing and failover capabilities. With its groundbreaking flexibility and ease of management, the RDX QuikStation is the “Swiss Army Knife” of data protection.

Fits in various Environments

The iSCSI connectivity of RDX QuikStation enables an easy integration into physical and virtual environments and also Hybrid cloud storage architectures. Providing four RDX iSCSI targets, up to four application server can utilize their own removable disk storage device.

Overcome Capacity Limitations

By spanning RDX drives in the QuikStation together, the capacity limitation of one single RDX media volume can be extended, but still maintain all RDX benefits of removability and protection of customer’s data.

Flexible and Simple

The RDX QuikStation is designed and manufactured by Tandberg Data to be enormously flexible while being simple to setup and manage. The onboard multi-language web-based management console provides for remote configuration, control, security, and management from a standard web browser. RDX QuikStation offers automatic software updates / maintenance via the internet.

Specifications:

Form Factor	1U Rackmount or Desktop Versions
Capacity	Media dependent (online): 20TB using 4 x 5TB pieces of media. Unlimited offline capacity
Data Transfer Rate	Up to 400 MB/s, concurrent read/write operations
Logical Media Move Time	<1 second
Network Connectivity	4 x 1 Gigabit Ethernet, bonded, active backup/failover or adaptive load balancing
Configuration Options	1-4 individual RDX QuikStor removable disk targets (addressable via 1 to 4 hosts) 1-4 individual RDX QuikStor fixed disk targets (for Windows Backup) 1 Logical Volume across all RDX drives*
Remote Management	Integrated browser-based management console with multi language support for English, French, German, Spanish, Italian, Norwegian, Russian, Chinese & Japanese.
USB Ports	Front USB3.0 x1, Rear USB3.0 x2 and USB2.0 x6
Removable Media Drive	4 x RDX drives
RDX Media Compatibility	Backward & Forward compatible will all RDX media generations: 500GB, 1TB, 2TB, 3TB, 4TB or 5TB (HDD); 128GB or 256GB (SSD)
Environmental Specifications
Power Input	100 - 240 Vac, 50 - 60Hz
Power Consumption	<90 Watts, typical
Environmental Compliance	EU RoHS, China RoHS, REACH, WEEE
Safety & Regulatory	FCC Class AB, UL, CE, TÜV-GS, CB C-Tick, VCCI, AS/NZS CISPR22, NMB-003, KCC
Product Specifications
Unit Dimensions Rackmount (DxWxH)	478mm x 440mm x 43mm / 18.82in. x 17.32in. x 1.69in.
Unit Dimensions Desktop (DxWxH)	481mm x 464.5mm x 68mm / 18.94in. x 18.29in. x 2.68in.
Packaged Dimensions (DxWxH)	655mm x 605mm x 220mm / 25.8in. x 23.8in. x 8.7in.
Net Weight Rackmount	5.98kg / 13.18lb
Net Weight Desktop	9.77kg / 21.54lb
Gross Weight Rackmount (Packaged)	11.3kg / 25lb
Gross Weight Desktop (Packaged)	13.6kg / 30lb
Operating Temperature	10° to 40° C (50° to 104° F)
Non-Operating Temperature	-20° to 60° C (-4° to 140° F)
Operating Humidity (Non-condensing)	20% to 80%
Other Features
Included in the Box	Ethernet cables (2), US and Euro power cords, USB Flash Drive, Rackmount Kit, Quick Start Guide (RDX media not included)
Warranty	3-Year Bronze Level Support (Advanced Replacement Service, where available)

*Logical Volumes are available in fixed or removable mode, as well as in protected modes

Specifications	RDX QuikStation 4		RDX QuikStation 8
Formfactor	1U Rackmount	Desktop	2U Rackmount
Part Number	8920-RDX	8922-RDX	8943-RDX
Network Connectivity	4 x 1 Gigabit Ethernet		2 x 10 Gigabit Ethernet, 1x IPMI
Network Mode	Active backup/failover, bonded or adaptive load balancing
Data Transfer Rate	Up to 400 MB/s (4 x 1 Gigabit Ethernet speed)		Up to 2000 MB/s (2 x 10 Gigabit Ethernet speed)
Capacity	Cartridge dependent (online): 20TB using 4 x 5TB pieces of media, unlimited offline capacity		Cartridge dependent (online): 40TB using 8 x 5TB pieces of media, unlimited offline capacity
Logical Media Move Time	<1 second
Configuration Options	1-4 individual RDX QuikStor removable disk targets (addressable via 1 to 4 hosts) 1-4 individual RDX QuikStor fixed disk targets (for Windows Backup) 1 Logical Volume with up to 4 RDX drives (removable and fixed disc mode) 1 Protected Logical Volume across all RDX drives with 1 disk fault tolerance (removable and fixed disc mode) Emulated disk autoloader (4 slots and 1 drive)		1-8 RDX QuikStor Drives in removable and fixed disk mode (addressable via 1 to 8 hosts) 2 Logical Volumes with up to 4 RDX drives** (addressable via 2 hosts) 1 Logical Volume with up to 8 RDX drives** (addressable via 1 host) Emulated StorageLoader™ (8 slots and 1 LTO-3 tape drive*) Emulated StorageLibrary™ T24 (8 slots and 2 LTO-3 tape drives*) Emulated disk autoloader (8 slots and 1 drive) 1 hybrid configuration that offers a combination of a LTO StorageLoader and 4 RDX targets
Remote Management	Integrated browser-based management console with multi language support: English, French, German, Italian, Norwegian, Russian, Spanish, Chinese & Japanese.
USB Ports	Front and Rear USB Ports
Removable Media Drive	4 x RDX drives		8 x RDX drives
RDX Media Compatibility	Backward & Forward compatible with all RDX media generations: 500GB, 1TB, 2TB, 3TB, 4TB, 5TB (HDD)
Environmental Specifications
Power Input	100 – 240 Vac, 50 – 60Hz, 2.0 - 1.0 A
Power Consumption	<90 watts, typical
Environmental Compliance	EU RoHS, RoHS China, REACH, WEEE
Safety & Regulatory	FCC Class B, CE, TÜV-GS, cTÜVus, RCM, VCCI, KCC Class A, CAN ICES-3 (B)/NMB-3(B)		FCC Class A, CE, cTÜVus, RCM, VCCI, KCC Class A, CAN ICES-3 (A)/NMB-3(A)
Product Specifications
Unit Dimensions (DxWxH)	478mm x 440mm x 43mm / 18.82in. x 17.32in. x 1.69in.	481mm x 464.5mm x 68mm / 18.94in. x 18.29in. x 2.68in.	521mm x 440mm x 86mm / 20.5in.x 17.3in. x 3.4in
Packaged Dimensions (DxWxH)	655mm x 605mm x 220mm / 25.8in. x 23.8in. x 8.7in		.686mm x 597mm x 254mm / 27.0in. x 23.5in. x 10.0in
Net Weight	5.98kg / 13.18lb	9.77kg / 21.54lb	14.96kg / 33.3lb
Operating Temperature	0° – 40°C (32° – 104°F)
Non-Operating Temperature	-20° – 60°C (-4° – 140°F)
Operating Humidity	20% to 80% (Non-condensing)
Other Features and Options
Redundant Power Supply			Optional (part.-no. 8993-RDX)
RDX TENCASE	Optional, stores up to 10 RDX media in a robust and secure box (part.-no. 1022291)
Included in the Box	Ethernet cables (2), US and Euro power cords, USB Flash Drive, Rackmount Kit (rackmount versions only), Quick Start Guide, Warranty Card, (RDX media not included)3
Warranty	3-years OverlandCare Bronze Level (Advanced Replacement Service, where available)

* LTO-3 Emulation does not limit the capacity of the RDX media used, ** Logical Volumes are available in fixed or removable mode, as well as in protected modes

Documentation:

Download the RDX QuikStation Datasheet (PDF).

Download the RDX Family Flyer (PDF).
