LTO-7 HH
Reliable, High-capacity Tape Drives

LTO-7 HH

Overland Storage Products
LTO-7 HH
LTO-7 HH Internal Drive, SAS, Bare
LTO-7 - 6 TB (Native)/15 TB (Compressed) - SASInternal - 300 MB/s Native - 750 MB/s Compressed - Linear Serpentine TAPE DRIVE BARE
#TD-LTO7iSA
Our Price: $3,247.68
LTO-7 HH Internal Drive, FC, Bare
LTO-7 - 6 TB (Native)/15 TB (Compressed) - Fibre ChannelInternal - 300 MB/s Native - 750 MB/s Compressed - Linear Serpentine TAPE DRIVE BARE
#TD-LTO7iFC
Our Price: $3,851.94
LTO-7HH External Drive, SAS, Kit
LTO-7 - 6 TB (Native)/15 TB (Compressed) - SAS1/2H Height - External - Linear Serpentine - TAA Compliant DRIVE W/MEDIA TAA
#TD-LTO7xSA
Our Price: $3,373.00

More pricing below, click here

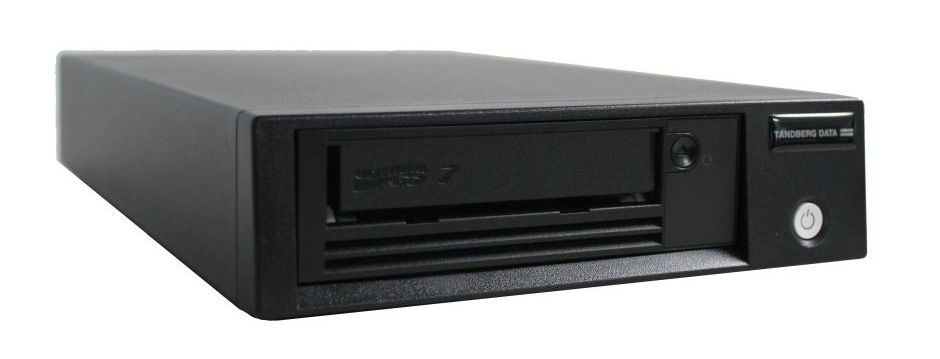

LTO-7 HH
Reliable, High-capacity Tape Drive

LTO-7 is the optimal solution for capacity-hungry, performance-driven applications like in the media and entertainment industry, in imaging applications, in medical environments or for the collection of scientific data.

LTO-7 is best for large Backup Sets. It provides smaller backup window and faster restores.

The Tandberg Data LTO-7 drive is able to store up to 15TB* of data on a single cartridge and provides performance of up to 2.7TB per hour. The LTO-7 tape drive is backward write-compatible through one generation and read-compatible two generations.

  • Capacity: 6TB / 15TB (native/compressed*)
  • Performance up to 2.7 TB/Hr (compressed*)
  • Low cost of ownership and low media cost
  • Enterprise features and performance in a small form factor
  • Future proof with 10-generation roadmap
  • Data speed matching reduces mechanical wear and extends tape life
  • Proven reliability MTBF of 250,000 hrs at 100% duty cycle
  • LTFS, WORM and AES 256-bit encryption
  • 30 year archival life
  • 3 years Advanced Replacement Service warranty

The LTO-7 tape drive supports LTFS, WORM and AES 256-bit hardware encryption providing maximum protection for data stored off-site or in transit. The Tandberg Data LTO-7 tape drive is offered with a SAS interface and a choice of internal and external configurations and is supplied with a 3 year Advanced Replacement Service warranty.

LTO tape technology makes it easy for users to standardize on a tape technology that meets today's data capacity requirements and ensures futures growth potential. LTO's ten-generation roadmap, with five generations available today, makes it a clear choice for small to medium-sized businesses.

Media Compatibility

The Tandberg Data LTO-HH tape drives are compatible with industry standard, multi-sourced LTO media.

* Assumes compression ratio of 2:1 on LTO-4/5 and 2.5:1 on LTO-6

Key Benefits:

  • Backup as much as 30TB of data on a single cartridge
  • Reduce your backup window and use of server and network resources with high-performance data transfer rates
  • Maximize your investment and ensure that your data is safe with proactive drive and media management
  • Secure confidential information and address compliance issues with hardware data encryption and WORM support
  • Ensure effortless connectivity with widespread server and backup software support
  • Provide backward compatibility to legacy tape cartridges in automation environments

Specifications:

Capacity (native/compressed) 6TB / 15TB*
Transfer Rate (native/compressed) 300 MB/s / 750 MB/s*
Dynamic Speed Matching 101 - 306MB/s
Memory Buffer Size 1GB
Data Access Speed 50 sec.
Data Compression 16KB (2.5:1)
Encryption AES 256-bit
LTFS Yes
Recording format LTO Ultrium 7, LTO Ultrium 6, LTO Ultrium 5 (read only)
Interface 6GB SAS/SFF 8088
Reliability
MTBF Hours (100% duty cycle) 250,000 hours @ 100% duty cycle
Head Life 100,000 tape running hours
Hard Error Rate 1 x 10(-19) bits
Environmental Specifications
Temperature (Operating) 50° - 100°F (10°C - 38°C)
Temperature (Non-operating) -40° – 151°F (-5°C - 65°C)
Relative Humidity (Operating) 20 – 80% (non-condensing)
Relative Humidity (Non-operating) 10 – 95% (non-condensing)
Power Requirements
Idle 4 W
Typical 29 W
Maximum 42 W
Power Supply/ Required (int) 5V DC, 3.7A, 12 V, 0.9A
Certification CSA Certification to C22.2, No. 60950 (cCSAus), TUV EN60950 (IEC 60950), CE Declaration of Conformity, FCC 47 CFR Parts 15, NOM, VCCI. C-TICK, RRL, BSMI, GOSH CB Certificate and Report (IEC 60950)
Warranty 3-years Advance Replacement Service Warranty**
Dimensions
Physical Internal /
External (HxWxD)
1.7 in. x 5.8 in. x 8.3 in.(43.2mm x 147.3mm x 210.8mm) /
2.3 in. x 8.4 in. x 13.1 in. (58.4mm x 213.4mm x 332.7mm)
Weight
Weight Out of box, Internal 3.7 lbs. (1.7 kg)
Weight Out of box, External 9.4 lbs. (4.3 kg)

* Assumes compression ratio 2:1 on LTO-2/3/4/5 & 2.5:1 on LTO-6/7
** Availability dependent on location

Tape Drive Specifications


  LTO-8 LTO-7 LTO-6 LTO-5
Capacity (native) 12TB 6TB 2.5TB 1.5TB
Capacity (Compressed) 30TB 15TB 6.25TB 3.0TB
Transfer Rate (native) 300MB/s (1TB/hr.) 300MB/s (1TB/hr.) 160MB/s (576GB/hr.) 140MB/s (504GB/hr.)
Transfer Rate (compressed) 750MB/s (2.7TB/hr.) 750MB/s (2.7TB/hr.) 400MB/s (1.4TB/hr.) 280MB/s (1TB/hr.)
Ratio 2.5:1 2.5:1 2.5:1 2:1
Interface 6Gb SAS/SFF 8088 6Gb SAS/SFF 8088 6Gb SAS/SFF 8088 6Gb SAS/SFF 8088
Configurations Internal; external/desktop Internal; external/desktop Internal; external/desktop Internal; external/desktop
Internal Dimensions (HxWXD) 1.7 in. x 5.8 in. x 8.3 in.
43.2mm x 147.3mm x 210.8mm
1.7 in. x 5.8 in. x 8.3 in.
43.2mm x 147.3mm x 210.8mm
1.7 in. x 5.8 in. x 8.3 in.
43.2mm x 147.3mm x 210.8mm
1.7 in. x 5.8 in. x 8.3 in.
43.2mm x 147.3mm x 210.8mm
External Dimensions (HxWxD) 2.3 in. x 8.4 in. x 13.1 in.
58.4mm x 213.4mm x 332.7mm
2.3 in. x 8.4 in. x 13.1 in.
58.4mm x 213.4mm x 332.7mm
2.3 in. x 8.4 in. x 13.1 in.
58.4mm x 213.4mm x 332.7mm
2.3 in. x 8.4 in. x 13.1 in.
58.4mm x 213.4mm x 332.7mm
Internal Weight 3.7 lbs. / 1.7 kg 3.7 lbs. / 1.7 kg 3.7 lbs. / 1.7 kg 3.7 lbs. / 1.7 kg
External Weight 9.4 lbs. / 4.3 kg 9.4 lbs. / 4.3 kg 9.4 lbs. / 4.3 kg 9.4 lbs. / 4.3 kg
Read/Write Compatibility Write: LTO-8, LTO-7
Read: LTO-8, LTO-7
Write: LTO-7, LTO-6
Read: LTO-7, LTO-6, LTO-5
Write: LTO-6, LTO-5
Read: LTO-6, LTO-5, LTO-4
Write: LTO-5, LTO-4
Read: LTO-5, LTO-4, LTO-3
MTBF (Mean Time Between Failure) 250,000 hours @100% duty cycle 250,000 hours @100% duty cycle 250,000 hours @100% duty cycle 250,000 hours @100% duty cycle
Buffer Size 1024MB 1024MB 512MB 256MB
Data Rate Matching (native) 112-365MB/s 101-306MB/s 40-160MB/s 40-140MB/s
Power Consumption (maximum) 30 watts 24 watts 24 watts 24 watts
Temperature (operating) 50° - 105°F
10° - 40°C
50° - 105°F
10° - 40°C
50° - 105°F
10° - 40°C
50° - 105°F
10° - 40°C
Humidity (operating) 20-80% (non-condensing) 20-80% (non-condensing) 20-80% (non-condensing) 20-80% (non-condensing)
Standard Warranty 3 yr. bronze advanced exchange 3 yr. bronze advanced exchange 3 yr. bronze advanced exchange 3 yr. bronze advanced exchange

Documentation:

Download the LTO Tape Drive Datasheet (PDF).
