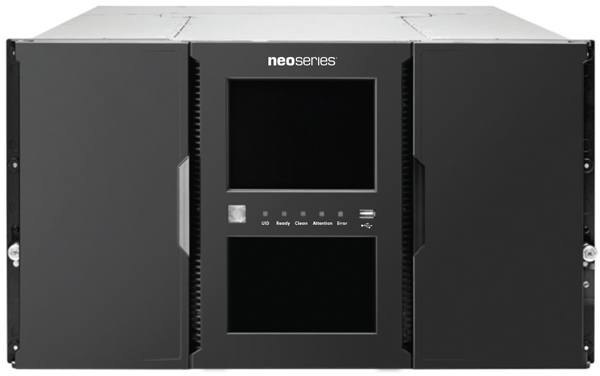

NEOxl 60
Backup and Archive Made Easy

NEOxl 60

This product is no longer available, contact us for a replacement!

Overview:

Delivering the optimal combination of flexibility, reliability, density, and capacity/performance, the NEOxl 60 is the ideal solution for midrange enterprises experiencing rapid data growth.

  • Capacity ranging from 90TB to 375TB
  • Data transfer rates ranging from 504 GB/hr. to 4.3TB/hr.
  • 6u form factor
  • Scales up to 560 slots and 42 tape drives
  • Removable cartridge magazines
  • Support for Overland Storage LTFS solutions

NEO XL-Series libraries address the need for midrange and enterprise businesses to do more with less by providing effortless automated backup that combines flexibility, density, high-performance and affordability to ensure that data is protected faster, smarter, easier and more cost effectively.

With This Product You Can...

  • Address small to medium enterprise backup and archive requirements with up to 513TB of data storage capacity
  • Meet backup windows and improve efficiency with high-performance data transfer rates that range from 504 GB/hr. to 8.6TB/hr.
  • Easily customize your capacity and performance to meet your data storage needs
  • Reduce administrative costs with simplified configuration and management
  • Lower your cost of ownership by reducing the amount of rack space, floor space, power and cooling typically needed for backup and archive applications
  • Benefit from the convenience of disk-like “drag & drop” capabilities associated with LTFS

About the NEO XL-Series Family

Automated tape libraries deliver the ultimate in flexible, cost-effective backup, archive and disaster recovery

Keeping pace with today's incredible data growth rates is a significant challenge for IT professionals, especially when it comes to protecting that data seamlessly and affordably. The NEO XL-Series addresses the need for midrange and enterprise businesses to do more with less by providing effortless automated backup that combines flexibility, density, high-performance and affordability to ensure that data is protected faster, smarter, easier and more cost effectively.

Flexibility – Grow into, not out of, your storage

The scalable design of the NEO XL-Series allows customers to customize their backup and archive solution by starting out as a 6u, 60-slot, single-drive library and scaling to as many as 560 slots and 42 tape drives. The seamless design of NEOxl libraries allows you to add both data cartridges and tape drives as you scale, instead of requiring you to chose between capacity or performance.

Effortless expansion of your NEO XL-Series library occurs by simply connecting additional 6u modules, with a maximum of 7 modules in a standard 42" rack. Installation and configuration of additional modules is simplified with the use of either the webbased remote management interface or the touch-screen operator control panel.

The scalable design of NEOxl libraries not only allows users to easily scale the library into a larger configuration, but it also enables simplified redeployment of individual modules into smaller applications. This flexibility makes NEO XL-Series the most ideal, most cost-effective solution for any midrange or enterprise environment.

Simplicity – Minimize administrative overhead

NEO XL-Series libraries provide convenient, simplified installation, setup and operation with a touch-screen operator control panel or web-based remote management. Removable cartridge magazines facilitate the loading, unloading and off-line storage of data cartridges, reducing media handling costs. Meanwhile, mail slots provide easy, secure access to individual tape cartridges without interrupting library operations, while NEOxl tape drives are easily added, removed or replaced to ensure effortless upgradeability and serviceability.

Affordability – Get the best return on your investment

NEO XL-Series libraries are designed to not only provide an affordable purchase price, but to deliver superior long-term cost of ownership. NEO XL-Series ease-of-use features and enterprise-class reliability ensure administrative, support and downtime costs are virtually eliminated, while the native partitioning functionality provides the ability to utilize a single library in a variety of applications.

Dependability – Backup and archive you can count on

NEO XL-Series libraries provide the reliability required by today's demanding IT environments to ensure that your data is readily accessible and always available. Features such as redundant power provide access to your data in the event of a power disruption, while easily replacable tape drives and tape library modules ensure seamless reconfiguration should a support event occur and require replacement.

All NEO XL-Series libraries are covered by a standard one-year, next business day onsite warranty. For customers requiring a higher level of onsite support, customers may upgrade to enhanced next-business day support or 24x7x4 hr response times for the most mission critical operations.

NEO XL-Series tape libraries provide the ultimate in automated data backup, archiving and disaster recovery by delivering the flexibility, affordability and dependability required for midrange and enterprise-class operations.

Features:


Remote Management

Remote Management

NEO XL-Series remote management provides intelligent, proactive administration and monitoring of the tape library, tape drives and media, ensuring a seamless backup and archive process.

Highlights
  • Provides tape drive and tape cartridge status information
  • Enables remote configuration activities
  • Alerts users to unusual/suspicious activity that may affect the backup/archive process via email or SNMP traps
  • Enables remote firmware upgrades
  • Provides remote diagnostics capabilities
Why You Need It...
  • Provides convenient and reliable management of the backup/archive process from anywhere in the world
Expandability/Scalability

Expandability/Scalability

NEO Series expandability/scalability features allow you to dynamically adjust your storage capacity and performance as your data storage needs change, adapting to ever-changing environments with a minimal amount of disruption while protecting your original library investment.

Highlights
  • NEO XL-Series can be scaled up to 560 cartridge slots and 42 tape drives, delivering enterprise-class functionality by simply adding up to 6 expansion modules to the base module
  • Flexible expandability and scalability allow you to reconfigure multi-module units and redeploy them as needed
Why You Need It...
  • Provides the flexibility to meet changing data storage requirements
Removable Cartridge Magazines

Removable Cartridge Magazines

NEO XL-Series removable cartridge magazines provide effortless media handling for loading/unloading of cartridges while facilitating off-line storage for disaster recovery purposes.

Highlights
  • Allows users to conveniently add/remove cartridges in their NEO XL-Series library
  • Provides easy off-line handling of multiple cartridges
  • Enables convenient off-line/off-site storage of cartridges for disaster recovery purpose
  • Ensures more efficient media handling both inside and outside of a NEO XL-Series library
Why You Need It...
  • Reduces administrative overhead by making media handling more efficient and reliable
Upgradable Tape Drives

Upgradable Tape Drives

Avoid those costly upgrades when new tape technologies become available. With NEO XL-Series libraries, you can upgrade your drives and media on the fly. Installing and removing tape drives in is quick and easy. LTO drives maintain backward compatibility to previous generation tapes, so you won’t orphan any data during the upgrade process. This approach not only protects your investment, but also minimizes administrative overhead, and reduces service/maintenance costs.

Highlights
  • Users can easily remove/replace tape drives to provide effortless upgrades to next-generation tape drive technologies
  • Downtime costs are eliminated by enabling end user replacement of tape drives (no waiting for a service tech to show up)
  • Tape drives can easily be added to existing tape libraries for increased performance and efficiency
  • Tape drives can be interchanged between NEO XL-Series libraries for increased investment protection
Why You Need It...
  • Protects your original library investment and reduces administrative overhead
Partitioning

Partitioning

NEO XL-Series partitioning capability allows you to configure a single physical library into multiple virtual libraries.

Highlights
  • Improves efficiency of the backup/archive process by enabling multi-tasking within the same library
  • Provides you with the flexibility to configure a single NEO XL-Series library to interface with different backup servers, regardless of their connectivity type or application
  • Protects your investment by allowing you to simultaneously use a single NEO XL-Series library with a variety of backup software applications
Why You Need It...
  • To maximize efficiency and improve cost of ownership
Effortless Installation and Configuration

Effortless Installation and Configuration

Simplified installation and configuration improves efficiency and reduces administrative overhead by ensuring that you can begin your backup and archive process quickly.

Highlights
  • Intuitive management console provides clear, consise guidance on installing and configuring a NEO XL-Series library
  • Web-based remote management provides additional levels of detail to easily customize the backup/archive process suited for your particular needs
  • Seamless expansion of additional modules, or redeployment of scaled configurations, occurs quickly and efficiently
Why You Need It...
  • To improve efficiency and maximize your investment
Superior Density

Superior Density

The ability to store the maximum amount of data in the minimal amount of rack space ensure the best value for your IT budget.

Highlights
  • Packing up to 500TB of data storage capability and data transfer rates as high as 8.6TB/hr. into a compact 6u form factor provides the most efficient use of valuable rack space
  • The ability to scale up to 3.5PB of capacity and 61TB/hr. of data throughput in a single standard 42u rack further takes NEO XL-Series density leadership the next step further
Why You Need It...
  • Reduces cost of ownership and improves efficiency
Proven Reliability

Proven Reliability

Enterprise-class reliability ensures the availability of your company’s most valueable asset … your corporate data.

Highlights
  • With a reliability rating of 2,000,000 load/unload cycles, NEO XL-Series libraries provide the high reliability required by enterprise-class environments.
  • Capitalizing on the NEO reputation for reliability, NEO XL-Series tape libraries provide the reliability and redundancy to ensure data availablility.
Why You Need It...
  • Ensures data availability and reduces cost of ownership

Technical Specifications:

Technical Specifications:
#of cartridge slots 60
#of tape drives 2
# of cartridge slots per magazine Up to 40
# of mail slots Up to 10
# of tape drives Up to 3 HH
Tape drives supported LTO5 SAS/FC, LTO6 SAS/FC
max. # of modules supported 1 base + 6 expansions
max. # of cartridge slots* 560
max. # of tape drives* Up to 42 HH
Max. native capacity per module (TB) LTO6: 150TB
LTO5: 90TB
Max. compressed capacity per module (TB) LTO6: 375TB
LTO5: 180TB
Max. native capacity - fully scaled (TB) LTO6: 1050TB
LTO5: 630TB
Max. native capacity - fully scaled (TB) LTO6: 2625TB
LTO5: 1260TB
Max. native data transfer rate per module (TB/hr.) LTO6: 1.7TB/hr
LTO5: 1.5TB/hr
Max. compressed data transfer rate per module (TB/hr.) LTO6: 4.3TB/hr
LTO5: 3.0TB/hr
Max. native data transfer rate - fully scaled (TB/hr.) LTO6: 12.1TB/hr
LTO5: 10.6TB/hr
Max. compressed data transfer rate - fully scaled (TB/hr.) LTO6: 30.2TB/hr
LTO5: 21.2TB/hr
Interfaces 6Gb SAS, 8Gb FC
Connectors Mini SAS, LC optical FC
Form Factor 6U
Dimensions (inches - unpackaged) 10.6" x 18.7" x 35.1" (268mm x 475mm x 892mm)
Weight 121 / 54.5 Kg
Power Requirements 350 watts (nominal)
Input Requirements 100 to 240 VAC, 50 to 60 Hz
Humidity (non-condensing; operating) 10% to 80% RH non-condensing
Temperature range (operating) 5° to 40°C
Reliability >2,000,000 MCBF (mean cycles between failures); <10 minutes MTTR (mean time to repair)
Safety CB, CE, NRTL
Emissions CE, FCC, ICES, EMC/EN, CCL, ETL
Standard Warranty NEO XL-Series libraries include a one-year OverlandCare Silver Support Program warranty offering, which includes 5x9 telephone support and NBD onsite support of FRUs, with customer replacement of CRUs

Product Comparison:

  NEOxl 60 NEOxl 80 NEOxl Expansion
  NEOxl 60 NEOxl 80 NEOxl Expansion
Configuration
# of cartridge slots 60 80 80
# of mail slots Up to 10 Up to 10 Up to 10
# of tape drives Up to 3 HH Up to 6 HH Up to 6 HH
Tape drive types supported LTO5 SAS/FC, LTO6 SAS/FC LTO5 SAS/FC, LTO6 SAS/FC LTO5 SAS/FC, LTO6 SAS/FC
max. # of modules supported 1 base + 6 expansions 1 base + 6 expansions 1 base + 6 expansions
max. # of cartridge slots* 560 560 n/a
max. # of tape drives* Up to 42 HH Up to 42 HH n/a
Capacity LTO6 LTO5 LTO6 LTO5 LTO6 LTO5
max. native capacity per module 150 TB 90 TB 200 TB 120 TB 200 TB 120 TB
max. compressed capacity per module 375 TB 180 TB 500TB 240 TB 500 TB 240 TB
max. native capacity - fully scaled 1.1 PB 630 TB 1.4 PB 840 TB n/a n/a
max. compressed capacity - fully scaled 1.1 PB 1.3 PB 3.5 PB 1.7 PB n/a n/a
Performance LTO6 LTO5 LTO6 LTO5 LTO6 LTO5
max. native data transfer rate per module 1.7 TB/hr. 1.5 TB/hr. 3.5 TB/hr. 3.0 TB/hr. 3.5 TB/hr. 3.0 TB/hr.
max. compressed data transfer rate per module 4.3 TB/hr. 3.0 TB/hr. 8.6 TB/hr. 6.0 TB/hr. 8.6 TB/hr. 6.0 TB/hr.
max. native data transfer rate - fully scaled 12.1 TB/hr. 10.6 TB/hr. 24.2 TB/hr. 21.2 TB/hr. n/a n/a
max. compressed data transfer rate - fully scaled 30.2 TB/hr. 21.2 TB/hr. 60.5 TB/hr. 42.3 TB/hr. n/a n/a
Interfaces
Interfaces 6 Gb SAS
8 Gb FC
6 Gb SAS
8 Gb FC
6 Gb SAS
8 Gb FC
Dimensions
H x W x D 10.6" x 18.7" x 35.1"
268mm x 475mm x 892mm
10.6" x 18.7" x 35.1"
268mm x 475mm x 892mm
10.6" x 18.7" x 35.1"
268mm x 475mm x 892mm
Rack height 6u per module; 42u max. 6u per module; 42u max. 6u per module; 42u max.
Weight (packaged) 121 lbs. / 54.5 Kg 121 lbs. / 54.5 Kg 100 lbs. / 50.0 Kg
Reliability
MCBF (mean cycles between failures) >2,000,000 >2,000,000 >2,000,000
MTTR (mean time to repair) <10 minutes <10 minutes <10 minutes
Environmental
Operating temperature 5° to 40°C 5° to 40°C 5° to 40°C
Operating humidity 10% to 80% RH non-condensing 10% to 80% RH non-condensing 10% to 80% RH non-condensing
Voltage/Frequency 100 - 240 V; 50/60 Hz 100 - 240 V; 50/60 Hz 100 - 240 V; 50/60 Hz
Power 350 watts 350 watts 350 watts

Documentation:

Download the NEO XL-Series Datasheet (PDF).
